Product Details:
Payment & Shipping Terms:
|
Product Name: | Outboard Engine | Stroke: | 2 |
---|---|---|---|
Max. Output: | 5hp | Cylinders: | 1 |
Lubrication System: | Gasoline & Machine Oil | Gear Ratio: | 27:13 (2.08) |
High Light: | outboard marine engines,electric outboard engine |
Warranty: 2.5 years for leisure use, and 1 year for commercial use.

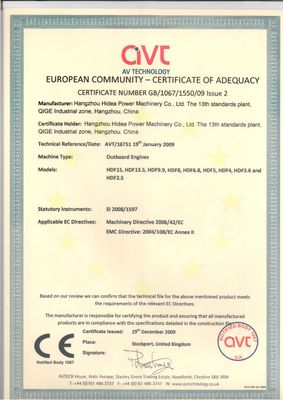

Certificate: CE, ISO9001, SGS
Product Line:
2-Stroke: 2.5hp, 3.5hp, 4hp, 5hp, 8hp, 9.8hp, 9.9hp, 15hp, 25hp, 30hp, 40hp, 60hp
4-Stroke: 2.5hp, 4hp, 5hp, 8hp, 9.9hp, 15hp, 25hp
with long shaft and short shaft, manual starter and electric starter to choose.
Hidea 2 stroke 5hp outboard engine specifications:
Model | HD-5F |
Max. Output | 3.7(Kw) |
Full Throttle Operating Range | 4500-5500(rpm) |
Stroke | 2 |
Cylinders | 1 |
Displacement | 102(cm3) |
Bore x Stroke | 55*43(mm) |
Length x Width x Height | S: 700*300*1010(mm) L: 700*300*1137(mm) |
Weight | S: 21(kg) L: 23(kg) |
Gear Ratio | 27:13 (2.08) |
Gear Shift Position | Forward-Neutral-Reverse |
Ignition System | CDI |
Cooling System | Water Cooling |
Starting System | Manual |
Control System | Tiller Control |
Lubrication System | Gasoline & Machine Oil |
Regular Gasoline | 50:1 |
